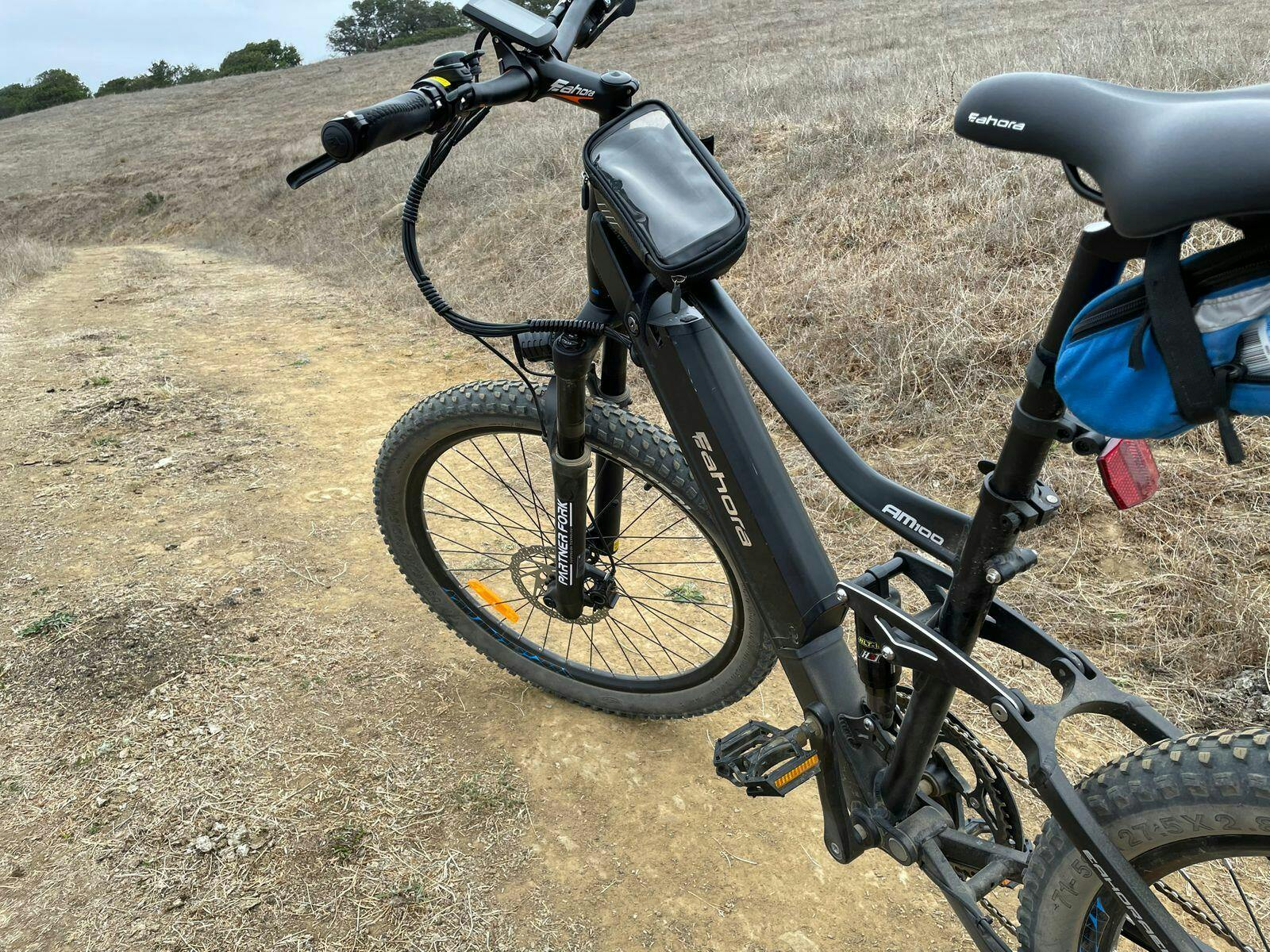

EAHORA AM100 500W 48V 14Ah Electric Mountain Bike

EAHORA AM100 500W 48V 14Ah Electric Mountain Bike

Regular price $1,399.00 USD
Regular price Sale price $1,399.00 USD
Sale Sold out
Shipping calculated at checkout.
✓ No Sales Tax (Except in Texas)
✓ Free Shipping In The Continental USA
✓ Need Help? Contact us: support@toprideelectric.com
✓ Lowest Price Guaranteed!
✓ Exclusive: Get 3% off with discount code: TREQ2
Color

EAHORA AM100

A top of the line 500w electric mountain bike with the 100 travel air suspension fork and rear suspension, a removable power battery with 672Wh capacity, and 27.5" * 2.8" Chaoyang tires that can tackle almost any terrain.


WHAT'S IN THE PACKAGE

Delivered with 85% assembled:
Ebike & battery;
Original charger & adaptor;
Front tire & quick release;
Headlight;
Pedals, saddle & seat post;
Product manual;
Screws and tools for assembly.



500W Electric Mountain Bike | 500W eBike Motor | Eahora AM100

500W HUB MOTOR

Eahora design the internal structure of the motor. All the while the 500 Watt high-speed brushless motor can produce fast speeds.

Max Torque: 45N.m



500W Electric Mountain Bike | 48V 14Ah eBike Lithium Battery | Eahora AM100

48V 14AH BATTERY

The battery is a crucial component of the electric bike. AM100 batteries ensure high safety and long life, which makes them vital for your ride to be long-lasting and enjoyable! Removable design means they're easy enough even if you don't have any experience installing bikes.

Throttle Mode Range: 28-29 Miles
PAS Mode Range: 56-59 Miles



500W Electric Mountain Bike | Full Suspension Electric Mountain Bike | Eahora AM100

Size and Geometry

Recommended Rider Height: 5'9" - 6'4" or 175CM - 195CM

Ⓐ - Total Length: 76.3" or 194CM

Ⓑ - Wheel Base: 47.2" or 120CM

Ⓒ - Seat Height: 35.0" - 42.5" or 89CM - 108CM

Ⓓ - Handlebar Height: 45.6" or 116CM

Ⓔ - Rim Diameter: 23.6" or 60CM

Ⓕ - Standover: 29.5" or 75CM

Ⓖ - Reach Distance: 16.1" or 41CM

Ⓗ - Chain Stay Length: 21.2" or 54CM

Ⓘ - Seat Angle: 66.8°

Ⓙ - Seat Tube Length: 17.7" or 450MM

Ⓚ - Bike Width: 25.9" or 66CM

Ⓛ - Top Tube Length: 20.8" or 53CM



Technical Specifications

Bike Class:
Class 3 ebike with throttle and pedal assist functions.

Bike Weight:
60.6lbs in total with the battery.

Range per Charge:
28 - 29 miles on throttle mode. 56 - 59 miles on pas mode.

Payload Capacity:
Recommend rider weight within 240lbs.



Electronic System

Motor:
RW05 500W DC hub motor, cassette; Max torque: 55N.M.

Battery:
48V 14AH 672WH lithium battery.

Controller:
48V, 20 ± 0.5A; 9MOS.

Charger:
54.6V ~ 2A smart charger; input 100-240V 50/60HZ.

Display:
3" portrait color display(YL-80C-C), IP65 Waterproof; brightness: 100CD/M2.

Lights:
Front light 48V LED light; rear reflector.

Wiring:
Water resistant connectors and wiring harness.



Bicycle Components

Frame:
6061 aluminum; frame size: 27.5" * 18".

Brakes:
180mm front and rear hydraulic disc brakes.

Brake Levers:
Aluminum alloy comfort grip levers with motor cutoff switch.

Tires:
27.5" * 2.8" CHAOYANG tires; tire pressure marked on sidewall.

Fork:
Air suspension alloy fork, adjustable; 120MM travel distance.

Rear Suspension:
Spring suspension(HLT-100).

Chain:
KMC chain.

Crank Set:
52T * 170MM; single-sided chainring guard

Shifters:
LTWOO(SL-V5009-9W) 9-speed.

Derailleur:
LTWOO(RD-V5009-M) 9-speed.

Freewheel:
LTWOO, 9-speed, 11-32T.

Grip:
Comfort rubber ergo grips.

Handlebar:
YC-B100 rise handlebar.

Pedals:
Wellgo(B087B) aluminum pedals with reflectors, polymer bearing.

Headset:
Integrated threadless headset.

Rack:
None.

Kickstand:
Aluminum leg with durable plastic cover, adjustable.

Fenders:
None.

Saddle:
Comfort leather saddle.

Rims:
Aluminum 36H spoke wheel.

Seatpost:
Aluminum Seatpost with clamp.

Bell:
Metal.
